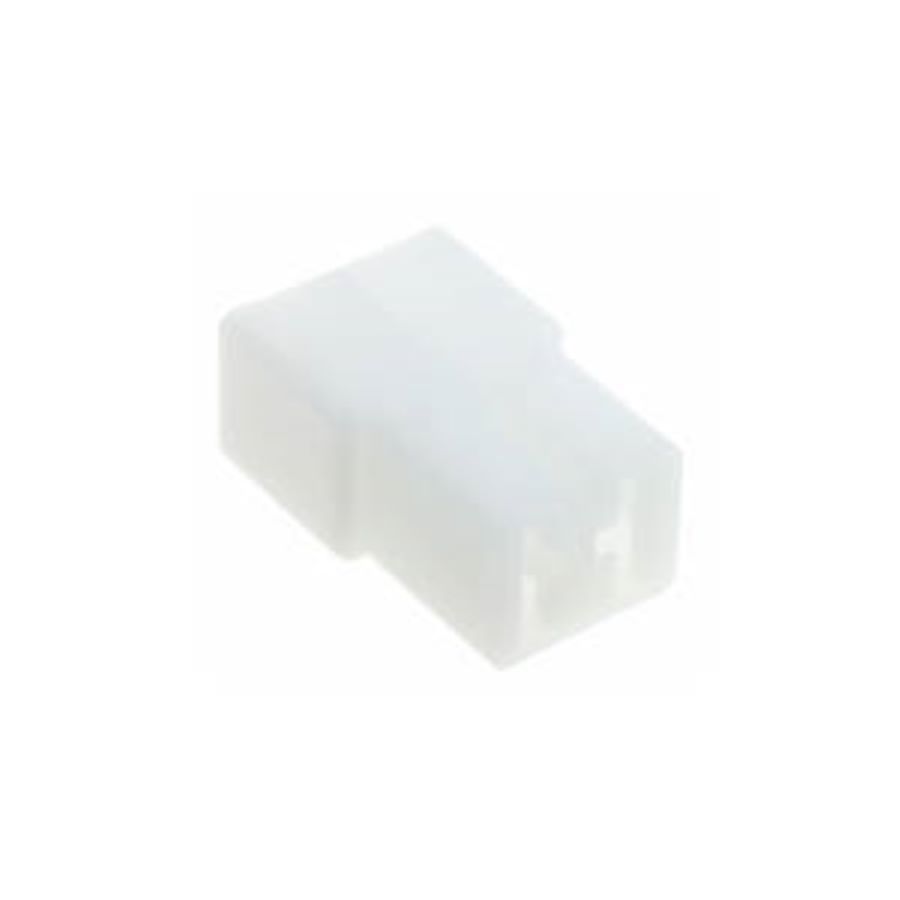

180923
Manufacturer:
TE Connectivity
Mfr.Part #:
180923
Datasheet:
Description:
Terminals Free Hanging Receptacle
| Parameter | Value |
|---|---|
| Length | 22.9 mm |
| Width | 10 mm |
| Termination | Quick Connect |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Material | Nylon, Polyamide |
| Packaging | Bulk |
| Depth | 22.9 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 6.35 mm |
| Type | Tab Housing |
| Current Rating | 28 A |
| Max Voltage Rating (DC) | 250 V |
| Number of Circuits | 2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 2 |
| Body Material | Glass fibre, Nylon |
| Tab Width | 6.35 mm |
| Connector Type | Connector, Tab |
| Insulation | Non-Insulated |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Natural |
| Termination Style | Crimp |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Stud Size | 6.35 mm |
Stock: 806
Distributors
pcbx
pcbxUnit Price$0.18106
Ext.Price$0.18106
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18106 | $0.18106 |
| 10 | $0.16377 | $1.63770 |
| 50 | $0.14813 | $7.40650 |
| 100 | $0.13543 | $13.54300 |
| 500 | $0.12382 | $61.91000 |
| 1000 | $0.11320 | $113.20000 |
| 3000 | $0.10721 | $321.63000 |
| 5000 | $0.10153 | $507.65000 |
